华三交换机堆叠实验

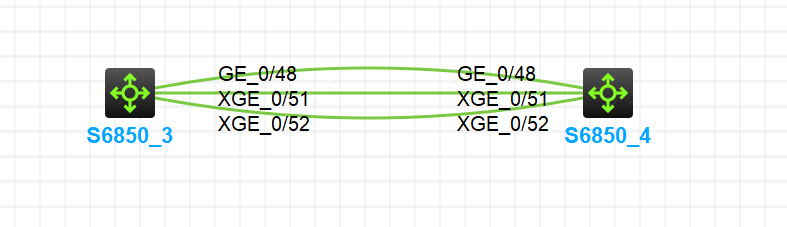

链式堆叠

！！！连接前先不要插线，配置完再插线

Master

主不需要重启

#
interface range Ten-GigabitEthernet 1/0/51 to Ten-GigabitEthernet 1/0/52
  shutdown
#
irf member 1 priority 10
#
irf-port 1/1
 port group interface Ten-GigabitEthernet 1/0/51
 port group interface Ten-GigabitEthernet 1/0/52
#
interface range Ten-GigabitEthernet 1/0/51 to Ten-GigabitEthernet 1/0/52
 undo shutdown
#
save
#
irf-port-configuration active

Standby

#
interface range Ten-GigabitEthernet 1/0/51 to Ten-GigabitEthernet 1/0/52
 shutdown
#
irf-port 1/2
 port group interface Ten-GigabitEthernet 1/0/51
 port group interface Ten-GigabitEthernet 1/0/52
#
interface range Ten-GigabitEthernet 1/0/51 to Ten-GigabitEthernet 1/0/52
 undo shutdown
#
irf member 1 renumber 2
#
irf-port-configuration active
#
save
#
连线后 reboot

MAD冲突检测

[Core]vlan 2000
[Core-vlan2000]port GigabitEthernet 1/0/48
[Core-vlan2000]port GigabitEthernet 2/0/48
[Core-vlan2000]qu
[Core]int vl 2000
[Core-Vlan-interface2000]mad bfd enable
[Core-Vlan-interface2000]mad ip address 10.1.1.1 30 member 1
[Core-Vlan-interface2000]mad ip address 10.1.1.2 30 member 2
[Core-Vlan-interface2000]qu
[Core]save force

查看命令

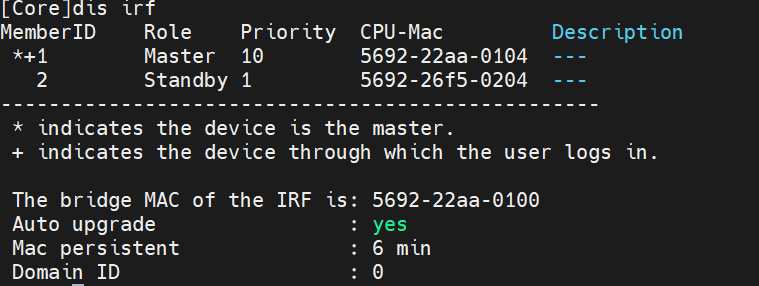

dis irf查看堆叠

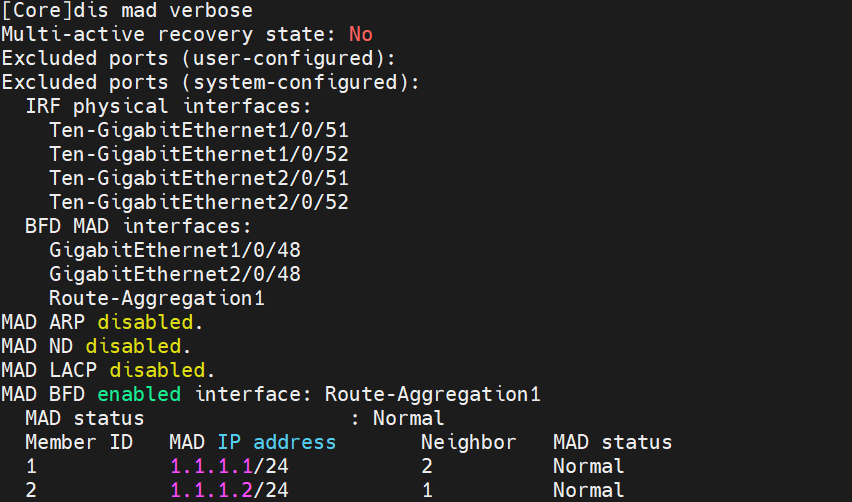

dis mad verbose查看mad
